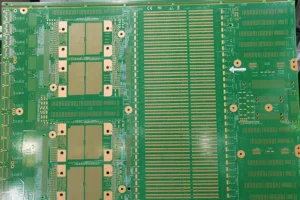

PCB dimensional change—often referred to as dimensional stability issues—is a long-standing and unavoidable challenge in printed circuit board manufacturing.
It directly affects inner-layer registration, outer-layer alignment, impedance control, BGA assembly yield, and overall product reliability.
From an engineering perspective, PCB dimensional change is not caused by a single defect, but by the combined effects of material properties, manufacturing processes, environmental exposure, and structural anisotropy.
Material-Related Factors
1. Base Material Properties
CTE (Coefficient of Thermal Expansion) Mismatch
A PCB is a multi-material composite consisting primarily of copper foil, glass fiber fabric, and resin systems.
Each material exhibits a different coefficient of thermal expansion (CTE).
During thermal cycles such as lamination, HASL, or reflow soldering, these differences generate internal stresses that lead to dimensional change.
Typical CTE Values of Common PCB Materials
Material | Direction | CTE (ppm/°C) | Notes |
Copper (Cu) | X/Y | ~17 | Isotropic |
FR-4 | X/Y | 14–18 | Close to copper |
FR-4 | Z-axis | 70–90 | Increases sharply above Tg |
Polyimide | X/Y | 20–30 | Used in flexible PCBs |
PTFE | X/Y | 100–200 | High-frequency materials |
When the processing temperature exceeds the glass transition temperature (Tg) of the resin, the elastic modulus drops rapidly and Z-axis expansion increases significantly, making multilayer boards particularly vulnerable to permanent dimensional change.
Moisture Absorption of Resin Systems
Epoxy-based laminates typically exhibit 0.1–0.3% moisture absorption by weight.
In high-humidity storage or production environments, absorbed moisture vaporizes rapidly during high-temperature processes, causing:
- Transient volumetric expansion
- Resin softening and stress redistribution
- Permanent shrinkage, warpage, or delamination
This effect is especially pronounced in thick multilayer boards and low-Tg materials.
Glass Fiber Fabric Anisotropy (Warp vs. Weft)
Glass fiber cloth is a woven structure, and its mechanical and thermal behavior is inherently anisotropic.
- Warp direction (machine direction):
Fibers are tensioned during weaving, densely packed, and mechanically stable.
→ Lower CTE, smaller dimensional change. - Weft direction (cross direction):
Fibers are relatively loose, resin-dominated, and more temperature-sensitive.
→ Higher CTE, larger dimensional change.
This anisotropy is one of the primary root causes of directional PCB shrinkage.
2. Non-Uniform Copper Distribution
Uneven copper distribution—such as high-density routing areas adjacent to copper-free regions—creates localized stiffness and thermal stress differences.
After etching, areas that lose copper constraint tend to release residual stress, resulting in local or global dimensional distortion.
Design and Process-Related Factors
1. Lamination Process
In multilayer PCB lamination, dimensional stability is strongly influenced by:
- Resin flow behavior
- Cure shrinkage
- Lamination temperature, pressure, and dwell time
Improper control can trap residual interlayer stress, which may be released during subsequent drilling, profiling, or soldering processes, causing delayed dimensional drift.
2. Imaging and Etching
Large-area copper removal during etching eliminates mechanical constraint on the laminate.
If inner-layer circuit patterns are not symmetric, stress redistribution becomes directional, further amplifying warp-weft shrinkage differences.
3. Drilling and Mechanical Processing
Mechanical drilling can damage the continuity of glass fibers and introduce localized stress concentration.
Operations such as V-cut and routing, if poorly sequenced or parameterized, may rapidly release accumulated internal stress, leading to board deformation—particularly in thin or elongated panels.
4. High-Temperature Processes
Processes such as hot air solder leveling (HASL) and lead-free reflow soldering expose PCBs to temperatures of 245–265 °C with rapid heating and cooling rates. Under these conditions:
- CTE mismatch becomes dominant
- Low-Tg materials soften more easily
- Permanent dimensional change is more likely
Environmental and Storage Factors
1. Temperature and Humidity Fluctuations
High humidity increases moisture uptake, while repeated thermal cycling accelerates material fatigue and stress accumulation, resulting in gradual dimensional instability.
2. Stress Relaxation Over Time
Even after machining, PCBs may contain residual internal stress.
Over time—especially after depanelization—this stress can relax slowly, leading to time-dependent dimensional drift, a common issue in large or asymmetric boards.
4. Special Materials and Structures
PCB Type | Dimensional Stability Risk |
High-frequency boards (PTFE) | Soft material, very high CTE |
HDI / Thin boards (≤0.6 mm) | Low mechanical rigidity |
Hybrid lamination structures | Severe CTE mismatch between layers |
Key Engineering Questions
1. Is the Dimensional Difference Between Warp and Weft Significant?
Yes—significantly so.
Due to glass fiber fabric structure, after identical lamination and soldering processes:
Weft-direction dimensional change (typically shrinkage)
is approximately 0.02%–0.05% greater than warp direction.
For large panels (>400 mm), this corresponds to 0.08–0.20 mm of additional shrinkage, depending on material grade, board thickness, and dielectric system—well beyond acceptable limits for HDI alignment and fine-pitch assembly.
2. Which Is More Unstable: Square or Elongated PCB Shapes?
Elongated (rectangular) boards exhibit much larger variation, especially when the long edge aligns with the weft direction.
- Square boards
Symmetric geometry leads to more uniform stress distribution. Anisotropy effects are balanced across axes, making dimensional behavior more predictable and easier to compensate. - Elongated boards
Absolute dimensional change along the long edge is magnified. If the long edge coincides with the higher-CTE weft direction, total shrinkage increases dramatically and becomes difficult to control. Additionally, uneven support during conveyor transport and machining further increases deformation risk.
Conclusion
PCB dimensional change is a system-level response of an anisotropic composite structure under thermal, hygroscopic, and mechanical loads.
Effective control requires coordinated optimization of:
- Material selection (high Tg, low moisture absorption, controlled CTE)
- Stack-up symmetry and copper balance
- Lamination and high-temperature process parameters
- Panel geometry and orientation
Through systematic engineering control, the impact of PCB dimensional change on layer-to-layer registration, pattern alignment, and assembly yield can be significantly reduced.
References
1. IPC-4101 – Specification for Base Materials for Rigid and Multilayer Printed Boards
2. IPC-TM-650 – Test Methods Manual
3. Isola Group, Dimensional Stability in Multilayer PCB Materials
4. Rogers Corporation, High-Frequency Laminate Material Properties
5. Bogatin, E., Signal and Power Integrity – Simplified, Pearson
6. Shengyi Technology, FR-4 Laminate Technical Data Sheets
